A Bridge

What a bridge is for

In a nativity, what the bridge means matters more than how it’s built. It divides the scene, with everyday life on one side and the stable on the other, and everyone has to cross it. Figures step onto it, pass each other and slow down.

In practice, make it wide enough for two figures to stand side by side, and turn it sideways to the viewer rather than pointing straight at them. A bridge seen head-on just disappears.

It doesn’t need water underneath. A bridge over a dry ravine, a sunken lane or a simple drop works just as well, and saves you from building the fountain.

How big to make it

There’s no standard size, but the math is simple. A 3-inch (7 cm) figure represents an adult about 5 feet 9 inches tall, so the scale is close to 1:24: one real foot is about half an inch. Everything else follows from that.

We worked these numbers out from the scale, since no manual publishes standard sizes for a nativity bridge. Redo the math if you use 1½-inch or 3½-inch figures. At 1½ inches, a foot is only about ¼ inch, and the same village bridge shrinks to an opening of about 3½ inches.

Here’s a quicker check: stand a figure next to the form. If it could walk under the arch without ducking, with a little room above its head, the opening is right. The most common mistake isn’t a bridge that’s too small, but one that’s too tall and takes over the whole scene.

The river that runs beneath

A bridge with no river under it looks like it was just plunked down in the scene. The stream doesn’t need to be wide (1½ to 2 inches is enough), but it has to pass under the arch and keep going on both sides. Otherwise it’s obvious the bridge crosses nothing.

Order matters: lay out the riverbed and finish the bottom before you put in the bridge. If you add the river afterward, it always runs into the bridge supports, and you’ll never get a clean edge where the water meets the stone.

Imitating water, from simplest to most involved

• Paint and gloss varnish. The bottom painted a dark brown-green, lighter toward the banks, then two or three coats of gloss varnish. It’s the most discreet and safest method, and on a small nativity it’s enough.
• Aluminum foil. Crumpled, then smoothed flat again, it catches the light in irregular facets. Glued under a coat of varnish, it gives a shimmer that paint alone can’t.
• Clear plastic sheet. A scrap of blister pack or binding cover, laid over a painted bottom. The thickness of the plastic creates real optical depth.
• Clear glue or acrylic medium. Spread in successive coats and worked with a brush as it begins to set, it freezes ripples and small eddies. It’s the best compromise between effect and risk.
• Clear silicone. Thicker and more moldable, it allows rough water and little waves around the piers. It yellows over time and is hard to clean.
• Casting resin. The most realistic finish, and the only one that gives real transparency in depth. The trade-offs: an irreversible pour, a strong smell, a long curing time, and a perfectly watertight bed to prepare.

What gives a river away

• Blue that’s too bright. Seen from above, river water is brown, green or gray. It takes the color of the riverbed, not the sky. Bright blue is everyone’s first instinct, and the first mistake.
• A straight line. Real rivers wind and change width. A straight channel looks like a ditch.
• Matching banks. In a real stream, the outside of a bend gets worn away while the inside collects gravel. A gentle slope on one side and a steep bank on the other is enough to suggest it.
• Too much moss. Plants stop where the water starts. They don’t line it with a neat green border.

Materials

The form, the key piece

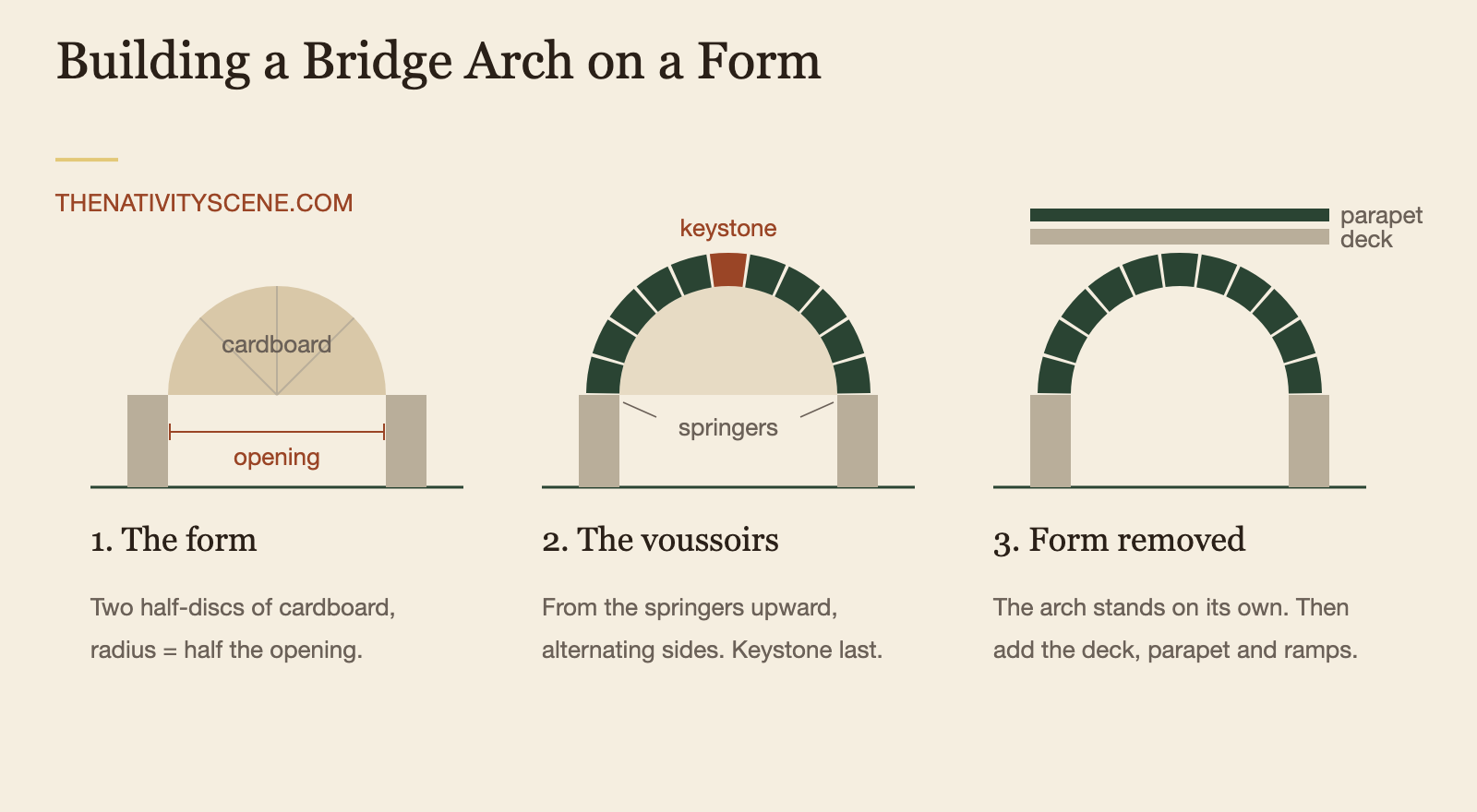

An arch is built on a temporary support that holds the stones until the keystone goes in. Stonemasons call it centering. Here, it’s just a cardboard half-circle.

1. Draw the half-circle

   The radius is half the opening. For a bridge with a 4¾-inch (12 cm) opening, draw a half-circle with a 2⅜-inch (6 cm) radius. Cut out two identical copies.

2. Space the two forms apart

   Join them with spacers the width of the bridge — 2½ to 3 inches (6–8 cm) for 3-inch figures. You get a half-tunnel on which to set the voussoirs.

3. Cut the voussoirs

   Trapezoids slightly wider on the outside than on the inside. An odd number works best — 9, 11 or 13 — because it puts one stone exactly at the top: the keystone.

Building the arch

1. Set the voussoirs

   Start from both bottom ends and work up toward the top, alternating left and right to keep it balanced. A dab of glue between each stone, and the form does the rest.

2. The keystone last

   It should take a little pressure to fit. If it slides in too easily, the arch is loose: tuck a paper shim against the stones next to it.

3. Let it dry, then remove the form

   Wait until it’s completely dry (several hours for white glue). Then slide the form out from the side. The arch should stand on its own. It’s a very satisfying moment.

4. Build the spandrels

   These are the two panels on either side of the arch, up to the level of the deck. Carve them like a stone wall, with one rule: the rows of stone should stop at the arch, never cut across it.

Deck, parapet, ramps

The deck (the surface you walk on) sits on top of the arch with a very slight hump in the middle. About ⅛ inch of rise is enough to give it that classic humpback look.

The side walls are what show the scale. They should come up to about hip height on a figure, roughly 1¼ to 1½ inches for a 3-inch figure. Any higher and they hide the people crossing. Any lower and they look like garden edging.

The ramps on either end deserve as much care as the arch, because they’re what tie the bridge into the landscape. Start them well back, on a gentle slope, getting wider toward the bottom. A bridge that starts abruptly ¾ inch from its arch looks like it’s sitting on a table.

Finishing and blending in

1. Fill the joints

   Fine spackling wherever two pieces meet, textured with a damp sponge before it sets.

2. Weather it like a wall

   Use the four steps from the stone wall tutorial, with one difference: the underside of the arch should always be darker and greener than the outside. It’s a damp spot that never sees the sun.

3. Wear down the path

   The middle of the deck is lighter and smoother than the edges, since that’s where people walk. A very light dry-brush down the center is enough to suggest centuries of foot traffic.

4. Add plants at the base

   A tuft of preserved moss at each end and a stray weed in a crack of the side wall. That’s all.
